What is a 5 point touch screen?

In the era of intuitive human-machine interaction, touch screens have become indispensable components across industrial, medical, outdoor, and transportation sectors. Among the various multi-touch technologies available, the 5-point touch screen stands out as a versatile and cost-effective solution that balances functionality, precision, and user-friendliness. But what exactly is a 5-point touch screen, how does it work, and why is it the preferred choice for countless professional applications? This article delves into the core of 5-point touch technology, exploring its principles, advantages, use cases, and technical specifications to help you make informed decisions for your specific project needs.

Definition: What Does "5-Point Touch" Mean?

A 5-point touch screen is a type of multi-touch display that can simultaneously detect, track, and respond to up to five distinct points of contact on its surface. Unlike single-touch screens, which only recognize one touch input at a time, or basic 2-point touch screens limited to simple gestures like pinch-to-zoom, 5-point touch technology enables more complex and natural interactions. These "points" typically correspond to fingers—meaning the screen can identify actions from up to five fingers simultaneously, unlocking a range of advanced gestures and multi-user operations.

Most modern 5-point touch screens utilize capacitive touch technology, though some industrial-grade models may adopt resistive technology with enhanced capabilities. The key distinction lies in the screen’s ability to process multiple input signals independently, ensuring accurate and responsive feedback even when multiple gestures are performed at the same time.

How Does a 5-Point Touch Screen Work?

The underlying technology of 5-point touch screens varies slightly by type (capacitive vs. resistive), but the core principle revolves around detecting and interpreting touch inputs through electrical signals. Below is a detailed breakdown of the most common implementation—capacitive 5-point touch technology, which dominates professional and consumer markets alike:

1. Core Components

• Touch Sensor Layer: A transparent panel coated with Indium Tin Oxide (ITO), a conductive material that forms a grid of tiny electrodes arranged in rows (X-axis) and columns (Y-axis). This grid creates an invisible matrix of capacitors across the screen surface.




• Controller Chip: A dedicated high-speed processor (e.g., FT3427DQY) that continuously scans the electrode grid, measures capacitance changes, and translates them into digital coordinates (X, Y) for the device’s operating system.




• Protective Glass: A durable top layer (usually with ≥6H hardness) that shields the sensor and display from scratches, dust, and physical damage, while maintaining high light transmittance (typically ≥83%).




• Display Layer: An LCD or OLED panel beneath the touch sensor that provides visual feedback to user inputs.

2. Working Mechanism (Capacitive Technology)

Capacitive touch screens operate based on the principle of capacitance—the ability of a material to store an electrical charge. Here’s a step-by-step explanation of how 5-point detection works:

1. Electrostatic Field Generation: The controller chip applies a small alternating voltage to the ITO electrode grid, creating a uniform electrostatic field across the screen surface.




2. Touch Detection: When a human finger (a natural conductor) touches the screen, it disturbs the electrostatic field at the point of contact. This disturbance causes a measurable change in capacitance between the affected row and column electrodes.




3. Multi-Point Tracking: For 5-point touch screens, the controller uses mutual capacitance technology—measuring the coupling capacitance between each pair of row and column electrodes. This allows the chip to independently detect and track up to five simultaneous capacitance changes (touch points) by scanning the grid at high speed (milliseconds per scan).




4. Signal Processing & Feedback: The controller processes the capacitance data to calculate the exact coordinates of each touch point. It then sends these coordinates to the device’s OS, which interprets the inputs (e.g., gestures, taps) and updates the display accordingly.

Notably, mutual capacitance technology eliminates the "ghost point" issue common in older self-capacitance systems, ensuring precise tracking of all five touch points without false detections.

Key Advantages of 5-Point Touch Screens

5-point touch screens offer a unique combination of functionality and practicality that makes them ideal for both professional and consumer applications. Their core advantages include:

1. Rich Gesture Support

Unlike single-touch or 2-point touch screens, 5-point technology supports a wide range of intuitive gestures, including:

• Basic gestures: Tap, swipe, drag, and double-tap.




• Advanced two-finger gestures: Pinch-to-zoom (for images, maps, or documents), two-finger rotation (for rotating visuals), and two-finger scrolling.




• Multi-finger shortcuts: Three-finger swipes (for app switching), five-finger pinches (for closing apps or returning to the home screen)—customizable based on the OS or application.

This gesture support significantly enhances user efficiency, especially in scenarios where quick, hands-on interaction is critical (e.g., industrial control panels, medical diagnostic devices).

2. High Precision & Responsiveness

5-point touch screens deliver exceptional touch accuracy (typically ±2mm) and fast response times (≤10ms), ensuring seamless interaction even for precision-dependent tasks. This is particularly important in medical applications (e.g., zooming in on X-ray images) and industrial settings (e.g., inputting precise parameters on a control panel).

3. Durability & Reliability

Professional-grade 5-point touch screens (especially those designed for industrial, medical, or outdoor use) feature rugged construction, including:

• Scratch-resistant glass (≥6H hardness) to withstand frequent use and harsh environments.




• Wide operating temperature ranges (-20°C to +70°C for standard models, -30°C to +80°C for storage), making them suitable for outdoor and extreme industrial conditions.




• Waterproof and dustproof ratings (up to IP65 for front panels) for applications in wet or dusty environments (e.g., outdoor kiosks, medical equipment).

4. Cost-Effective Versatility

While 10-point touch screens offer more advanced multi-touch capabilities, 5-point touch screens provide the optimal balance of functionality and cost. For most professional applications (e.g., industrial control, vehicle-mounted displays, medical devices), 5 points are more than sufficient to meet user needs—eliminating the need for unnecessary premium costs.

Applications of 5-Point Touch Screens (Focus on Industrial, Medical, Outdoor, Transportation)

5-point touch screens are widely adopted across vertical sectors where intuitive, reliable, and precise interaction is essential. Below are their key applications in the core industries we specialize in:

1. Industrial Sector

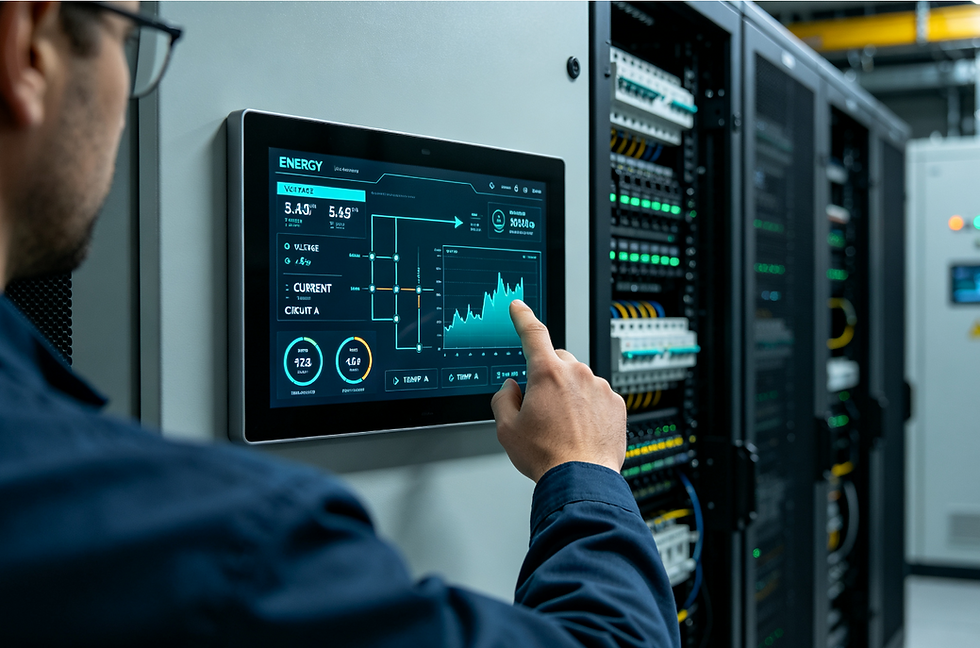

In manufacturing, automation, and industrial control, 5-point touch screens serve as human-machine interfaces (HMIs) for equipment operation and monitoring. Key use cases include:

• Industrial control panels: Operators can use multi-finger gestures to adjust parameters, zoom in on process data, and switch between monitoring screens—improving operational efficiency.




• Factory automation terminals: Touch screens mounted on production lines allow workers to input commands, view real-time data, and troubleshoot issues with intuitive gestures.




• Embedded systems: Custom 5-point touch modules (e.g., 5.7-inch, 10.4-inch, 15-inch sizes) integrated into industrial equipment for seamless control.

Our industrial-grade 5-point touch screens feature anti-interference capabilities (resistant to electromagnetic interference, EMI) and fanless designs, ensuring stable performance in harsh industrial environments.

2. Medical Sector

In healthcare, 5-point touch screens are used in diagnostic equipment, patient monitoring systems, and medical workstations—where precision, hygiene, and ease of use are critical:

• Diagnostic devices (e.g., ultrasound machines, X-ray viewers): Doctors can zoom in on medical images, rotate visuals, and adjust settings using multi-finger gestures—enhancing diagnostic accuracy.




• Patient monitoring systems: Nurses can quickly navigate through patient data, input notes, and adjust monitoring parameters with intuitive touches.




• Medical kiosks: Self-service terminals in hospitals for patient check-in, appointment scheduling, and medical record access—supporting multi-user interaction.

Our medical-grade 5-point touch screens are designed with IP65 waterproof and dustproof front panels, easy-to-clean surfaces, and high brightness (up to 1000 nits) for clear visibility in bright medical environments.

3. Outdoor Sector

Outdoor applications require touch screens that can withstand extreme weather conditions, sunlight glare, and heavy use. 5-point touch screens are ideal for:

• Outdoor information kiosks: Installed in malls, airports, and public spaces for wayfinding, event information, and self-service—supporting multi-user gestures even in direct sunlight.




• Outdoor advertising displays: Interactive ads that allow users to zoom in on product details, rotate images, and access additional information.




• Environmental monitoring stations: Touch screens for viewing real-time weather data, pollution levels, and other environmental metrics—withstand rain, dust, and temperature fluctuations.

Our outdoor 5-point touch screens feature high transmittance (≥83%), anti-glare coatings, and wide viewing angles, ensuring clear visibility and reliable touch performance in all outdoor conditions.

4. Transportation Sector

In automotive, marine, and rail applications, 5-point touch screens are used for in-vehicle infotainment (IVI) systems, navigation, and control panels:

• Car infotainment systems: Drivers and passengers can use gestures to adjust volume, switch music, zoom in on navigation maps, and access smartphone integration features (e.g., Apple CarPlay, Android Auto).




• Marine control panels: Touch screens for boat navigation, engine monitoring, and climate control—resistant to water splashes and vibration.




• Railway information terminals: Interactive displays in train stations for schedule inquiry, ticket booking, and wayfinding—supporting high traffic and multi-user interaction.

Our transportation-grade 5-point touch screens are designed to withstand vibration, extreme temperatures, and electromagnetic interference—meeting strict automotive and rail industry standards.

5-Point vs. 10-Point Touch Screens: Which Is Right for You?

While 5-point touch screens are versatile, it’s important to understand how they compare to 10-point touch screens to choose the right solution for your application:

Feature	5-Point Touch Screen	10-Point Touch Screen
Simultaneous Touch Points	Up to 5	Up to 10
Gesture Support	All basic and advanced gestures (zoom, rotate, swipe, multi-finger shortcuts)	Same as 5-point, plus support for more complex gestures (e.g., 6+ finger inputs, multi-hand interaction)
Ideal Applications	Industrial control, medical devices, vehicle-mounted displays, outdoor kiosks, consumer electronics (basic tablets, smartphones)	Professional design (e.g., graphic tablets), large-format collaboration screens, high-end consumer electronics (flagship tablets, laptops)
Cost	More cost-effective	Higher cost (due to advanced controller chips and sensor technology)

For 90% of professional applications (industrial, medical, outdoor, transportation), 5-point touch screens provide sufficient functionality at a lower cost. 10-point touch screens are only necessary for specialized use cases that require extreme multi-touch capabilities.

Our Custom 5-Point Touch Screen Solutions

With 15 years of experience in manufacturing touch screens, touch modules, and touch displays, we specialize in providing custom 5-point touch screen solutions tailored to the unique needs of industrial, medical, outdoor, and transportation sectors. Our capabilities include:

• Custom Sizes: From 3.5-inch to 32-inch and beyond—we can design 5-point touch screens to fit your specific device dimensions (e.g., 5.7-inch for industrial HMIs, 10.4-inch for medical equipment).




• Custom Interfaces: Support for I2C, USB, HDMI, VGA, and other interfaces to ensure seamless integration with your system.




• Environmental Customization: Tailored operating temperature ranges, protection ratings (IP65/IP67), brightness levels (300-1000 nits), and anti-glare/anti-fingerprint coatings.




• Optical Bonding: Optional optical bonding for enhanced durability, reduced reflection, and improved touch responsiveness—critical for outdoor and high-brightness applications.




• Quality Assurance: All our 5-point touch screens undergo strict testing (temperature cycling, vibration, ESD, EMI) to meet industry standards (ISO 9001, IATF 16949 for automotive, ISO 13485 for medical).

Conclusion

A 5-point touch screen is a versatile, precise, and cost-effective multi-touch solution that enables intuitive human-machine interaction across a wide range of professional applications. Whether you’re designing an industrial control panel, a medical diagnostic device, an outdoor kiosk, or a vehicle-mounted infotainment system, 5-point touch technology provides the functionality you need to enhance user experience and operational efficiency.

At [Your Company Name], we leverage our 15 years of expertise to deliver custom 5-point touch screen solutions that meet the unique requirements of your industry. From custom sizes and interfaces to rugged environmental designs, we work closely with you to turn your vision into reality. Contact us today to discuss your 5-point touch screen project and discover how our solutions can elevate your product.
