In outdoor applications, screens often suffer from poor visibility under direct sunlight. Meanwhile, water droplets on the screen during rainy weather frequently cause insensitive touch response, ghost touch and other troublesome issues. Below are effective solutions to address these problems.

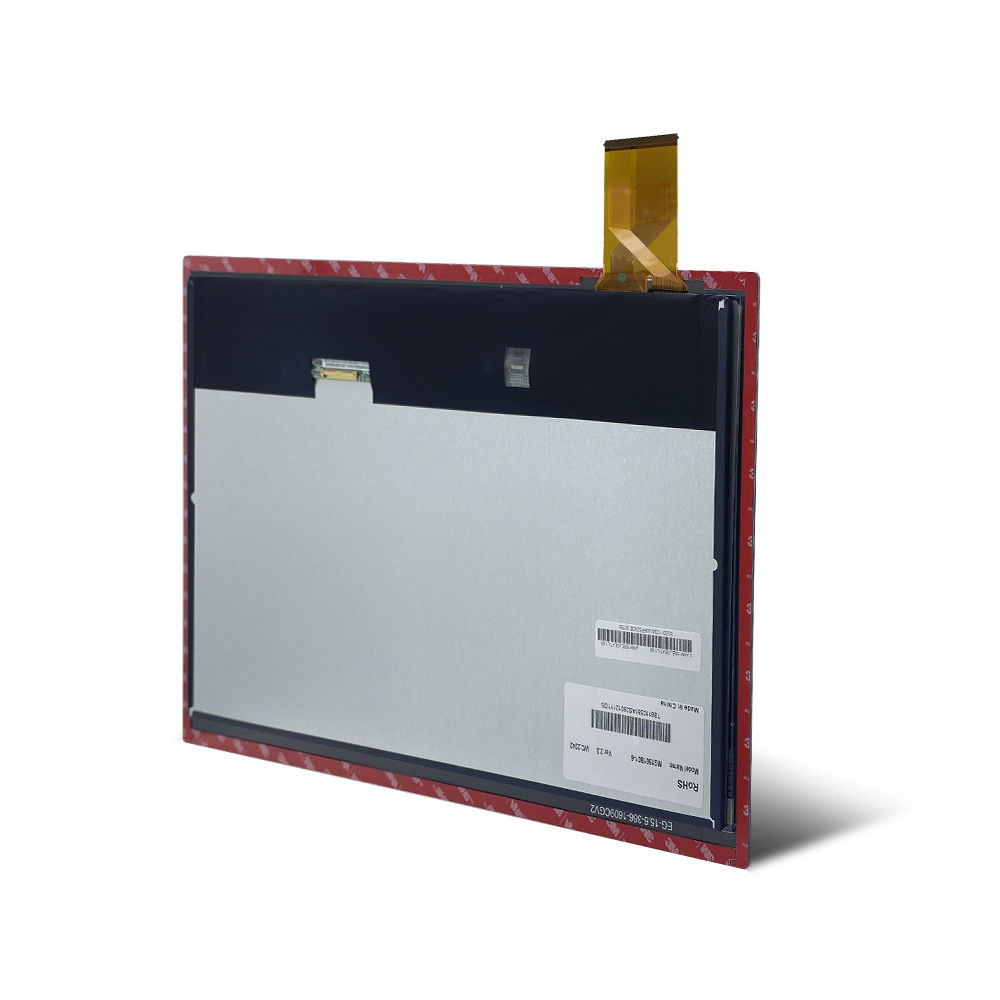

Features of the lcd touch screen 15.6 inch
1.High-brightness high-luminance backlight module with a brightness of 1000 nits. Adopting full lamination technology to eliminate air gaps between screen layers, reduce multi-layer refraction and diffuse reflection, and avoid internal screen glare and whitening under strong light. It effectively enhances picture clarity, transparency and dynamic contrast.
2.Enhanced surface optical coating with dual layers of AG anti-glare and AR anti-reflection & transmittance-enhancing coating. It disperses intense specular reflection to eliminate light spots and harsh glare, while lowering the surface reflectivity of the glass, boosting light transmittance and enriching color layering.
3.Adopted outdoor-dedicated high contrast panels with an original static contrast ratio of ≥1000:1, maintaining deep black levels without graying or whitening under strong ambient light.
4.The screen is equipped with thickened UV-resistant tempered glass and low-reflection ultra-clear glass, which reduces the absorption and reflection of natural light. Meanwhile, it features excellent anti-UV aging performance, ensuring no yellowing and no image quality degradation after long-term outdoor use.
5.Equipped with an external light sensor to enable automatic ambient brightness detection. A dedicated outdoor high-brightness mode is integrated to instantly boost peak brightness, deepen black levels, and dynamically enhance contrast and color saturation with one-click activation.
6.Professional image parameter calibration suppresses overexposure in bright areas, raises shadow thresholds, and enhances color sharpness. It prevents washed-out and whitened images under strong light while sharpening the edge definition of texts and icons.
7.Adopts high-temperature and UV-resistant dual-curing adhesive materials to inhibit photo-oxidative cracking of polymer materials, preventing adhesive aging and discoloration as well as internal light transmittance attenuation.
8.Ordinary general OCA adhesive is replaced with outdoor yellowing-resistant grade OCA optical adhesive/silicone liquid glue. Formulated with UV stabilizers and anti-aging additives, it delivers upgraded UV aging resistance, preventing yellowing, glue precipitation and fogging under long-term sunlight exposure.
9.An additional ink protective layer is applied, with transparent UV-resistant protective varnish coated on the silk-screen surface. It blocks direct UV erosion to the ink layer, isolates photochemical reactions, and locks in color performance and light-shielding properties.
Specifications:
Touch Panel P/N: EG-15.6-A-1609V1
Screen Diagonal：15.6/16:9
Cover Outline Dimension：380.56*229.99mm
Touch Panel View Area: 344.56*193.99mm
Touch Panel Active Area: 345.56*194.99mm
Touch Panel Thickness: 2.9mm
Cover surface hardness: ≥6H
Impact resistance: ≥IK07
Support Touch Points: 10 points Typ.
Touch Report Rate: ≥100 HZ
Transmittance: ＞85%
Pixels H×V: 1920 x 3(RGB) x 1080
Support Color: 16.7M Colors
Contrast Ratio: 1000 Typ.
FAQ
1.Q: Can the screen remain visible under direct strong sunlight?
A: Yes. With 1000nits high brightness, full lamination, and AG+AR dual coating, the screen avoids reflection, whitening and overexposure, delivering excellent outdoor visibility.
2.Q: Will the screen turn yellow or foggy after long-term outdoor use?
A: No. It uses yellowing-resistant OCA, UV stabilizers, UV-resistant glass and ink protection layer, preventing yellowing, glue precipitation and fogging.
3.Q: How is the contrast and black level performance?
A: It uses outdoor high-contrast panels with native static contrast ≥1000:1, maintaining deep blacks without graying or whitening even in bright light.
4.Q: Does the brightness adjust automatically according to the environment?
A: Yes. It supports an external light sensor for auto brightness detection, and a dedicated outdoor highlight mode for one-click boost of brightness, contrast and saturation.
5.Q: Is this screen suitable for long-term use in harsh outdoor environments?
A: Absolutely. It features UV resistance, high temperature resistance and anti-aging design, with materials and processes optimized for long-term outdoor exposure.
