what is a capacitive touch screen monitor

A capacitive touch screen monitor is an advanced display that allows users to interact with a computer or device by directly touching the screen. Unlike traditional monitors that require a separate mouse and keyboard, it integrates the input mechanism directly onto the display surface. The term "capacitive" refers to the underlying technology that detects touch, which is the same technology used in modern smartphones and tablets. This makes it a premium, highly responsive choice for a wide range of applications.

How Does It Work? The Science of Touch

The core principle behind a capacitive touch screen is the science of capacitance—the ability of a system to store an electrical charge. The human body is a natural electrical conductor, and this property is what the screen exploits.

Here's a breakdown of the components and the process:

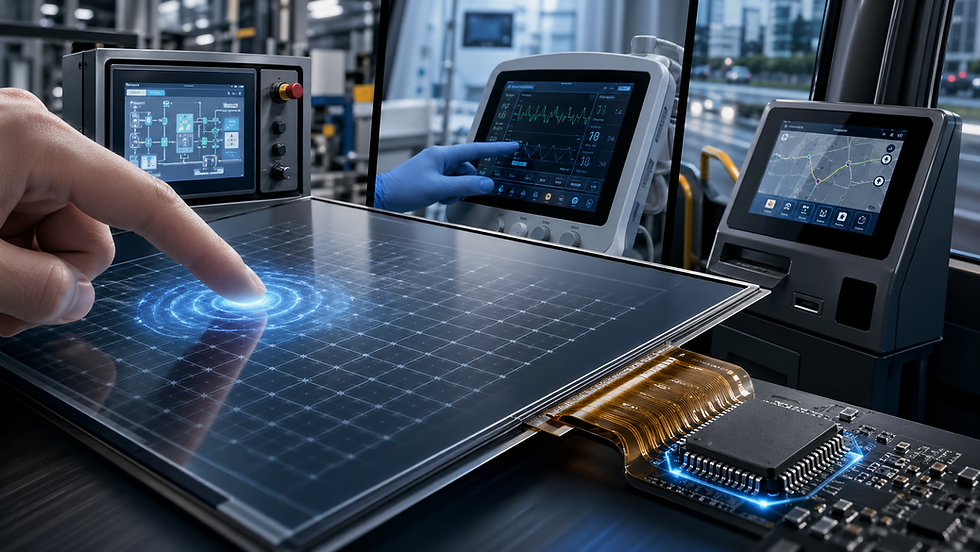

1. The Sensor Grid: The monitor's screen is overlaid with a transparent, conductive layer, typically made from a material called Indium Tin Oxide (ITO). This layer is etched with a microscopic grid of horizontal and vertical electrodes, creating an array of capacitors that maintain a uniform, low-voltage electrostatic field across the entire surface.

2. The Touch Event: When a conductive object, like a bare finger, comes into close proximity to the screen, it distorts this localized electrostatic field. The finger effectively acts as a second capacitor, drawing a minute amount of electrical charge to the point of contact.

3. The Controller: A dedicated microcontroller chip, located in the monitor's bezel or housing, constantly measures the voltage and capacitance at every point on the grid. It detects the precise location where the change in the electrical field occurs.

4. Coordinate Processing: The controller calculates the exact X and Y coordinates of the touch point and sends this data to the computer's operating system via a USB cable. The computer then interprets this touch as a mouse click or gesture, allowing the user to control the interface.

Key Features and Advantages

Capacitive touch monitors are favored for several compelling reasons:

• Exceptional Clarity and Brightness: The conductive ITO layer is highly transparent, allowing for excellent light transmission. This results in a vibrant, sharp image with no compromising haze, unlike some other touch technologies.

• Superior Multi-Touch Capability: This is one of its defining features. Capacitive screens can easily and accurately track multiple touch points simultaneously. This enables complex and intuitive gestures like pinch-to-zoom, two-finger scrolling, and rotation.

• High Durability and Surface Hardness: The front surface is typically made of durable glass (like Gorilla Glass), which is highly resistant to scratches from everyday use. It can withstand millions of touches without wear and tear.

• Excellent Sensitivity and Responsiveness: Capacitive screens respond to a very light touch, providing a smooth and fluid user experience. There is no need to apply pressure.

• Resistance to Surface Contaminants: Because the touch is detected through electrical field distortion, the screen is not affected by dust, dirt, or moisture on the surface, as long as it is not excessive enough to conduct electricity like a finger (e.g., large water spills can cause issues).

Limitations and Considerations

• Conductive Input Only: The primary limitation is that they generally only work with a bare finger or a specially designed capacitive stylus. They will not register input from a gloved hand (unless it's a specially conductive glove) or a standard plastic stylus.

• Cost: Capacitive technology is generally more expensive to manufacture than older resistive or basic infrared touch screens.

• Vulnerability to Impact: While the glass is scratch-resistant, it can be susceptible to cracking if subjected to a sharp impact.

• Potential for Accidental Touches: The high sensitivity can sometimes lead to accidental activation if the screen is brushed against.

Common Applications

You will find capacitive touch monitors in environments that demand a premium, reliable, and intuitive user experience:

• Interactive Kiosks: In museums, airports, shopping malls, and hotels for wayfinding and information.

• Point-of-Sale (POS) Systems: In retail and restaurants for fast and modern checkout experiences.

• Digital Signage: As interactive advertising or informational displays.

• Industrial Control Panels: For operating machinery and monitoring processes in factories.

• Gaming and Arcade Machines: For an engaging and modern interface.

• Automotive Infotainment Systems: In modern vehicles for control of navigation, music, and climate systems.

In summary, a capacitive touch screen monitor is a high-performance display that uses the conductive properties of the human body to enable precise, multi-touch interaction. Its combination of brilliant image quality, robust construction, and intuitive gesture support makes it the technology of choice for many modern commercial, industrial, and consumer applications.
