Resistive vs Capacitive Touch Screens: Why Capacitive Technology Became the Mainstream
- Apr 19
- 13 min read
Resistive touch screens were once widely used in industrial panels, POS terminals, handheld devices, and early touch-enabled electronics. They were simple, cost-effective, and could be operated with a finger, glove, stylus, or almost any object.
However, as user interfaces became more visual, gesture-driven, and display-integrated, projected capacitive touch technology gradually became the mainstream choice. Today, capacitive touch screens dominate smartphones, tablets, modern HMIs, medical terminals, kiosks, vehicle displays, and many industrial control systems.
This does not mean resistive touch screens have disappeared. In some specific applications, they still provide value. But for most modern touch display projects, capacitive touch screens offer stronger advantages in optical clarity, multi-touch operation, surface durability, industrial design flexibility, and long-term user experience.
This article analyzes the technical evolution from resistive to capacitive touch screens from four perspectives: design architecture, manufacturing process, user experience, and lifecycle maintenance.
Quick Selection Guide: Resistive or Capacitive Touch Screen?
Before comparing every technical detail, engineers can use the following quick checklist to identify the most suitable touch technology direction for a new device project.
Decision Question | Recommended Direction |
Need multi-touch, gesture control, or smartphone-like interaction? | Yes → Choose PCAP capacitive touch. Best for modern HMI, kiosks, medical displays, and smart terminals. |
Need operation with gloves, water droplets, outdoor exposure, or cleaning environments? | Yes → Choose tuned industrial PCAP. Use controller tuning, grounding, shielding, water rejection, and glove mode validation. |
Need compatibility with legacy hardware, pressure input, or operation by any object? | Yes → Consider resistive touch. Suitable for simple control panels, older systems, and pressure-based input needs. |
Need a sealed glass front, easy cleaning, optical bonding, or premium display clarity? | Yes → Choose industrial PCAP. Better for medical, outdoor, public-use, and high-clarity display applications. |
For most new industrial, medical, outdoor, and commercial touch display projects, tuned PCAP is usually the better long-term choice. Resistive touch remains useful when pressure-based input, legacy compatibility, or very simple single-touch operation is the main requirement.
Table of Contents
Design-Level Analysis: Fundamental Differences in Touch Architecture
Structural Design Differences Between Resistive and Capacitive Touch Screens
Why Capacitive Touch Replaced Resistive Touch at the Design Level
Manufacturing-Level Analysis: Cost and Process Evolution
User Experience Analysis: A Major Upgrade in Human-Machine Interaction
Environmental Adaptability: Resistive Still Has Specific Advantages
Lifecycle Maintenance Analysis
Why Capacitive Touch Became the Mainstream
Current Market Position: Replacement Does Not Mean Elimination
Future Technology Trends
Final Thoughts
CTA
1. Design-Level Analysis: Fundamental Differences in Touch Architecture
1.1 How Resistive Touch Screens Work
A resistive touch screen detects touch through physical pressure. Its structure usually includes two conductive layers separated by tiny spacer dots. When the user presses the surface, the top conductive layer contacts the bottom conductive layer. The controller then calculates the touch position based on the voltage change at the contact point.
A typical resistive touch screen includes:
A flexible PET top film
Transparent conductive coating
Spacer dots
Bottom conductive layer
Glass or rigid substrate
Touch controller circuit
Because the technology depends on physical contact between two conductive layers, it can be operated with a finger, glove, stylus, plastic pen, or other pressure-based input tool. This is one of the key reasons resistive touch screens remained popular for industrial and legacy control applications for many years.
1.2 How Capacitive Touch Screens Work
A capacitive touch screen detects touch through changes in capacitance. In modern projected capacitive touch, also called PCAP, the touch sensor usually contains a transparent conductive electrode pattern, commonly made with ITO or other conductive materials.
When a finger approaches or touches the cover glass, it changes the local electric field and capacitance between the sensing electrodes. The touch controller detects this small capacitance change, processes the signal, filters noise, and calculates the touch coordinates.
A typical PCAP touch screen includes:
Chemically strengthened cover glass
Transparent conductive sensor layer
X/Y electrode matrix
FPC connection
Touch controller IC
Firmware algorithm
Host communication interface
Modern mutual-capacitive PCAP technology can detect multiple touch points independently. This enables true multi-touch gestures such as zooming, rotating, swiping, dragging, and multi-finger operation.
2. Structural Design Differences Between Resistive and Capacitive Touch Screens
Design Factor | Resistive Touch Screen | Capacitive Touch Screen |
Sensing method | Physical pressure contact | Capacitive field change |
Surface material | Usually PET film or flexible top layer | Glass cover surface |
Input method | Finger, glove, stylus, plastic object | Finger, conductive stylus, glove with proper tuning |
Multi-touch ability | Usually single touch in standard designs | True multi-touch with PCAP |
Optical clarity | Lower due to multiple film layers | Higher due to glass and optical bonding options |
Surface durability | Easier to scratch or wear | Better scratch resistance with strengthened glass |
Mechanical wear | Conductive layers may wear over time | No pressure-contact wear in normal operation |
Industrial design | More traditional interface style | Modern flat, sealed, edge-to-edge design |
The key difference is that resistive touch depends on mechanical deformation, while capacitive touch depends on electrical field sensing. This difference directly affects product design, display performance, user experience, and lifecycle reliability.
3. Why Capacitive Touch Replaced Resistive Touch at the Design Level
3.1 Multi-Touch Capability
Standard resistive touch screens are mainly designed for single-touch operation. Although special resistive multi-touch structures exist, they are not the mainstream solution for modern user interfaces.
Capacitive touch screens, especially mutual-capacitive PCAP designs, can detect multiple touch points independently. This makes them suitable for modern interaction methods such as:
Pinch-to-zoom
Two-finger rotation
Multi-finger gestures
Interactive dashboards
Advanced HMI operation
Medical image navigation
Smart kiosk interfaces
As devices moved from simple button-style interfaces to gesture-based interfaces, capacitive technology became the natural choice.
3.2 Better Optical Performance
Resistive touch screens use multiple layers of film and conductive coating. These layers can reduce light transmission and slightly affect display clarity. In many designs, the screen may appear less bright or less sharp compared with a capacitive glass-based structure.
Capacitive touch screens usually provide better optical performance because they use a glass surface and can be combined with optical bonding, anti-glare treatment, anti-reflective coating, and high-transmission sensor design.
For applications such as medical displays, outdoor kiosks, industrial HMIs, and premium control panels, better readability is a major advantage.
3.3 Faster and More Natural Touch Response
Resistive touch screens require physical pressure. This can make the operation feel slower or less natural, especially for swiping and gesture input.
Capacitive touch screens respond to light touch. When matched with the right controller IC, firmware, and host system, they can provide smoother tracking and lower perceived latency.
For modern users who are already familiar with smartphones and tablets, capacitive touch feels more intuitive.
3.4 Flat and Sealed Front Design
Capacitive touch screens can be built with a continuous glass front surface. This makes it easier to create flat, sealed, and easy-to-clean front panels.
This design is especially valuable for:

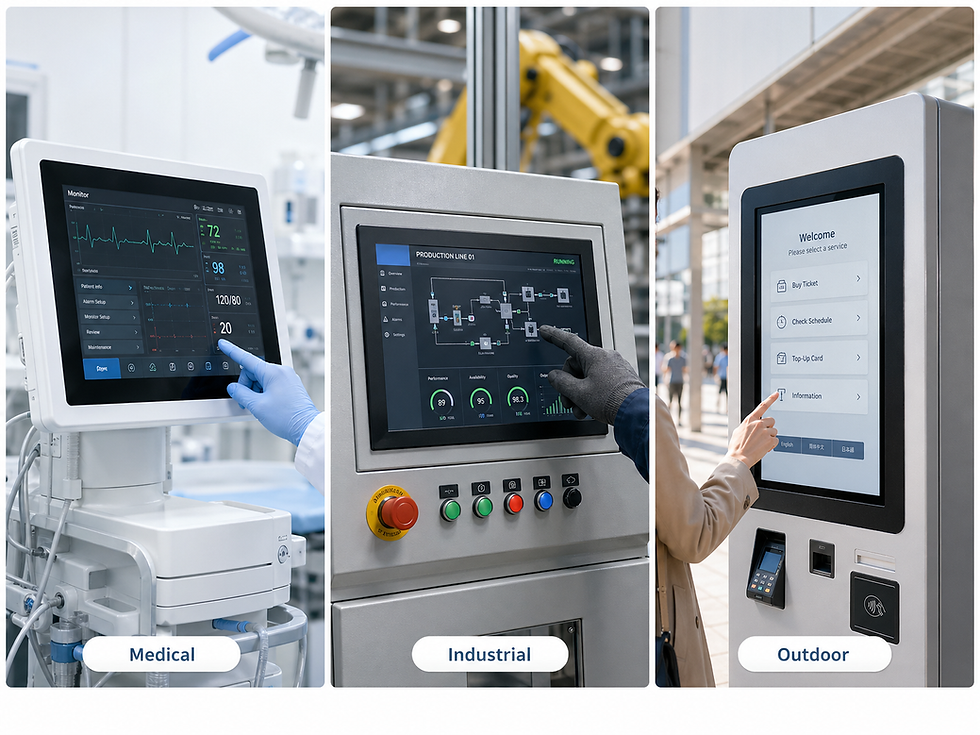

Medical devices
Food processing equipment
Outdoor terminals
Industrial HMIs
Public self-service kiosks
Laboratory instruments
A sealed glass surface can reduce dust accumulation, improve cleaning efficiency, and support higher protection requirements when integrated with the correct housing and gasket structure.
4. Manufacturing-Level Analysis: Cost and Process Evolution
4.1 Early Cost Gap Between Resistive and Capacitive Touch Screens
In the early stage of touch screen development, resistive touch screens had a clear cost advantage. Their structure was simpler, the manufacturing process was mature, and the supply chain was well established.
Capacitive touch screens were initially more expensive because they required:
Precision transparent conductive patterning
Better glass processing
More advanced controller ICs
More complex bonding and assembly
Higher process control requirements
This made resistive technology attractive for cost-sensitive applications.
4.2 Why the Cost Gap Became Smaller
As smartphones, tablets, and smart devices grew rapidly, capacitive touch technology benefited from massive production scale. The supply chain for cover glass, ITO sensors, controller ICs, FPCs, bonding materials, and automated assembly became more mature.
At the same time, manufacturing processes improved. Examples include:
Better sensor patterning methods
Improved glass strengthening processes
More stable optical bonding
Higher yield rates
Better touch controller integration
More automated assembly lines
As a result, capacitive touch screens became more affordable and more accessible for industrial and commercial equipment.
4.3 Integration With Display Technology
Another important reason capacitive touch became mainstream is its ability to integrate deeply with modern display technologies.
Capacitive touch can be used in different structures, including:
G+G touch structures
G+F and G+FF structures
On-cell touch structures
In-cell touch structures
Optical bonding with LCD or OLED modules
These structures help reduce thickness, improve display clarity, and support modern industrial design.
Resistive touch screens are more difficult to integrate seamlessly into thin, bright, high-resolution display modules because their operation depends on mechanical pressure and layered film contact.
4.4 New Conductive Materials and Process Development
Traditional capacitive sensors often use ITO as the transparent conductive material. As display sizes increase and flexible designs become more important, alternative conductive materials have also been developed, such as:
Metal mesh
Silver nanowire
Conductive polymer
Carbon-based conductive materials
These materials can support larger sizes, lower resistance, improved flexibility, or better manufacturing adaptability in certain applications.
This continued material evolution gives capacitive touch technology a stronger development path than traditional resistive structures.
5. User Experience Analysis: A Major Upgrade in Human-Machine Interaction
5.1 Touch Feel and Interaction
User Experience Factor | Resistive Touch Screen | Capacitive Touch Screen |
Touch activation | Requires pressure | Responds to light touch |
Gesture operation | Limited | Supports smooth multi-touch gestures |
Swipe experience | Less smooth | More fluid and natural |
Display clarity | Lower due to film layers | Higher due to glass structure |
Surface feel | Softer film surface | Hard glass surface |
Common user perception | Traditional, functional | Modern, smooth, premium |
Capacitive touch screens changed user expectations. After smartphones popularized light-touch and multi-touch operation, users began expecting the same interaction quality in industrial, medical, and commercial devices.
5.2 Visual Experience
Modern touch displays are not only input devices. They are also visual interfaces.
Capacitive touch screens support better visual integration because they can be paired with:
High-resolution LCDs
Optical bonding
AG anti-glare glass
AR anti-reflective coating
AF easy-clean coating
This makes them suitable for applications where readability and screen appearance are important.
Resistive touch screens can still work well for basic control input, but they usually cannot match the visual quality of modern glass-based capacitive touch displays.
5.3 Modern Industrial User Expectations
Industrial users are also influenced by consumer electronics. Operators, engineers, and technicians are familiar with smartphone-like touch interaction. They often expect industrial HMIs to support:
Faster touch response
Clearer graphics
Multi-touch gestures
Easy cleaning
Smooth menu navigation
Better visual feedback
Modern interface design
This trend has pushed industrial equipment manufacturers to adopt capacitive touch technology more frequently, especially in new-generation HMIs and smart machines.
6. Environmental Adaptability: Resistive Still Has Specific Advantages
6.1 Advantages of Resistive Touch Screens
Although capacitive touch technology has become mainstream, resistive touch screens still have strengths in certain conditions.
Resistive touch can be useful when:
The device must accept input from any object
The user wears very thick gloves
A plastic stylus or hard tool is required
The interface is simple and mostly button-based
Cost is the dominant factor
The product is based on a legacy control system
Because resistive touch depends on pressure, it is less dependent on the electrical properties of the input object.
6.2 Earlier Limitations of Capacitive Touch Screens
Traditional capacitive touch screens could be sensitive to:
Water droplets
Conductive liquid
Heavy gloves
Poor grounding
EMI interference
Large metal housings
High noise environments
However, modern industrial PCAP technology has improved significantly. With the right controller IC, sensor design, firmware tuning, grounding, shielding, and mechanical structure, capacitive touch screens can now support many demanding industrial applications.
6.3 Modern Industrial PCAP Improvements
Modern industrial PCAP technology has improved significantly compared with early capacitive touch screens. With the right controller IC, sensor pattern, cover glass design, firmware tuning, grounding structure, and system-level validation, PCAP touch screens can now be adapted to many demanding industrial, outdoor, medical, and commercial environments.
touchpro does not treat PCAP touch as a standard consumer-grade touch panel. For industrial projects, touchpro evaluates the full touch system, including the cover glass thickness, sensor layout, FPC design, controller IC, display noise, mechanical enclosure, grounding path, glove type, water exposure, and EMI environment.
Glove Touch Optimization
For industrial and medical applications, touchpro PCAP solutions can be tuned and validated for glove operation. Depending on the controller IC, sensor structure, cover glass thickness, and glove material, the solution can support common latex gloves, nitrile gloves, medical gloves, and selected industrial work gloves.
In project-specific designs, glove operation can be evaluated with glove thickness up to approximately 3–5 mm, depending on the final glass stack, controller sensitivity, grounding design, and actual glove material. Final performance should always be verified with the customer’s real gloves and operating environment.
Water Rejection and Wet Touch Support
For outdoor kiosks, food processing equipment, medical terminals, and public-use devices, touch screens may be exposed to rain, water droplets, cleaning liquids, or wet fingers. touchpro can support water rejection tuning to reduce false touch, ghost touch, and unstable coordinates caused by surface moisture.
The final wet-touch performance depends on the touch controller, firmware algorithm, cover glass surface treatment, grounding structure, sealing design, and the type of liquid on the surface.
EMI Resistance and Grounding Optimization
Industrial environments often include motors, inverters, relays, high-voltage cables, power supplies, and wireless modules. These noise sources can affect capacitive touch performance if the touch system is not properly designed.
touchpro can help optimize the sensor pattern, FPC routing, shielding structure, grounding path, controller tuning, and interface design to improve EMI resistance and touch stability. This is especially important for industrial HMIs, vehicle-mounted displays, outdoor terminals, and equipment installed near power electronics.
Thick Cover Glass and Rugged Front Design
Industrial touch displays often require thicker cover glass for impact resistance, vandal resistance, or front-panel protection. touchpro can design PCAP touch solutions for strengthened cover glass structures and evaluate the balance between glass thickness, touch sensitivity, optical clarity, and mechanical durability.
For outdoor or public-use equipment, PCAP touch can also be combined with optical bonding, AG anti-glare coating, AR anti-reflective treatment, AF easy-clean coating, antibacterial coating, and IP-rated front sealing.
System-Level Validation
The reliability of an industrial PCAP touch screen cannot be judged only by the touch panel specification. It should be validated as a complete system, including the LCD module, controller board, cable, enclosure, grounding design, software settings, and real operating environment.
touchpro supports project-based evaluation for glove touch, wet touch, EMI conditions, cover glass structure, optical bonding, surface treatment, interface compatibility, and production feasibility. This helps customers choose a touch solution that works reliably in real-world conditions, not only in laboratory testing.
7. Lifecycle Maintenance Analysis
7.1 Surface Durability
Resistive touch screens usually use a flexible top layer. This layer may be more vulnerable to scratches, dents, and mechanical wear after repeated pressing.
Capacitive touch screens usually use strengthened glass as the front surface. This provides better scratch resistance and a more durable surface for frequent use.
For public-use equipment, industrial panels, and medical terminals, this surface durability can reduce long-term maintenance pressure.
7.2 Mechanical Wear
A resistive touch screen works through physical contact between layers. Over time, repeated pressing can affect the conductive coating, spacer structure, or surface film.
A capacitive touch screen does not require mechanical deformation for touch detection. This reduces pressure-contact wear and helps extend operational life when the product is properly designed and protected.
7.3 Calibration and Stability
Many resistive touch screens require calibration, especially after long-term use, surface wear, or mechanical drift. This can add maintenance work.
Capacitive touch screens usually support automatic baseline calibration through the controller IC and firmware. This helps maintain stable touch performance without frequent manual calibration.
For large fleets of industrial or commercial devices, reduced calibration work can lower maintenance cost and improve uptime.
7.4 Total Cost of Ownership
Although capacitive touch screens may have a higher initial cost in some configurations, they can reduce long-term cost through:
Better surface durability
Lower mechanical wear
Less frequent calibration
Better visual performance
Modern interface capability
Easier cleaning
Longer product lifecycle
Better integration with display modules
For many industrial and commercial devices, the decision should not be based only on the initial touch panel price. Engineers should evaluate the full cost over the product’s service life.
8. Why Capacitive Touch Became the Mainstream
The replacement of resistive touch screens by capacitive touch screens was not caused by one single factor. It was the result of multiple technology and market forces.
Perspective | Resistive Touch Limitation | Capacitive Touch Advantage | Replacement Driver |
Design | Mainly single-touch, pressure-based operation | Multi-touch, light-touch operation | Modern interface requirements |
Display quality | Lower optical clarity due to film layers | Better transparency and optical bonding options | Better visual experience |
Manufacturing | Mature but limited upgrade path | Scalable supply chain and advanced integration | Cost gap narrowed over time |
User experience | Requires pressure and feels less modern | Smooth gestures and smartphone-like interaction | User expectation changed |
Maintenance | Surface film can wear and require calibration | Glass surface and self-calibration | Lower maintenance workload |
Product design | Harder to build thin sealed premium structures | Supports flat, sealed, modern glass front | Better industrial design flexibility |
Capacitive touch screens became the mainstream because they better matched the direction of modern display-based interaction: clearer images, lighter touch, multi-touch gestures, sealed glass surfaces, and integrated design.
9. Current Market Position: Replacement Does Not Mean Elimination
In consumer electronics, capacitive touch screens are now the dominant technology. Smartphones, tablets, smart home panels, and premium commercial terminals almost all use capacitive touch.
In industrial and professional fields, the situation is more balanced. Capacitive touch is increasingly used in new-generation equipment, but resistive touch still has value in specific cases.
Capacitive Touch Is Better Suited For:
Modern industrial HMIs
Outdoor self-service kiosks
Medical touch displays
Vehicle-mounted displays
Smart commercial terminals
High-resolution touch monitors
Multi-touch control panels
Sealed glass-front equipment
Resistive Touch May Still Be Suitable For:
Legacy industrial control systems
Low-cost single-touch panels
Pressure-based stylus input
Simple button interfaces
Applications requiring operation by any object
Certain environments where capacitive tuning is not practical
The real trend is not that capacitive touch has completely eliminated resistive touch. The real trend is that capacitive touch has become the preferred choice for most modern touch display systems, while resistive touch remains a niche solution for specific requirements.
10. Future Technology Trends
10.1 Deeper Display Integration
On-cell and in-cell structures help reduce thickness, improve optical performance, and simplify module design. This trend is especially important for mobile devices, tablets, and thin display systems.
10.2 Larger Industrial Touch Displays
Capacitive touch is increasingly used in large-format industrial monitors, interactive terminals, digital signage, education displays, and command systems.
10.3 Better Glove and Water Touch
Industrial PCAP controllers are becoming better at handling gloves, water droplets, palm rejection, and noise filtering.
10.4 Improved EMI Resistance
As touch screens are used in more complex industrial systems, controller algorithms, grounding design, shielding structures, and FPC layout will become increasingly important.
10.5 Advanced Surface Treatment
AG, AR, AF, antibacterial coating, anti-reflective glass, and anti-smudge treatment help capacitive touch screens adapt to outdoor, medical, and public-use environments.
10.6 AI-Assisted Touch Algorithms
Future touch systems may use more advanced algorithms for gesture prediction, false touch suppression, handwriting improvement, and adaptive environmental tuning.
11. Final Thoughts
The rise of capacitive touch screens was driven by a combination of better user experience, improved optical performance, multi-touch capability, manufacturing scale, display integration, and lower long-term maintenance requirements.
Resistive touch screens are not obsolete in every situation. They still work well for certain simple, low-cost, pressure-based, or legacy applications. However, for most new touch display projects, especially those requiring modern user interfaces, high optical clarity, sealed glass surfaces, multi-touch operation, and long lifecycle value, capacitive touch technology is usually the better choice.
For industrial, medical, outdoor, and commercial equipment manufacturers, the key is not simply choosing “resistive” or “capacitive.” The better question is:
Which touch technology best matches the operating environment, user behavior, interface requirement, reliability target, and total lifecycle cost of the device?
touchpro provides customized capacitive touch screen solutions for industrial HMIs, medical equipment, outdoor terminals, vehicle-mounted systems, and smart commercial devices. From cover glass design and sensor structure to controller tuning, optical bonding, surface treatment, and system integration, touchpro helps customers build reliable touch interfaces for real-world operating conditions.
